Precision thermostat

I made in 1996 a precision analog thermostat for controlling an electric heater.

This application uses three integrated circuits: temperature sensor LM335, voltage reference TL431 and operational amplifier LM108, all of them are high precision circuits.

Specification:
- precision analog thermostat
- design with a minimum of components
- easy calibration without need for temperature reference
- 230 VAC command
- adjustable trigger temperature from 10 to 50 °C
- 1.5 °C hysteresis

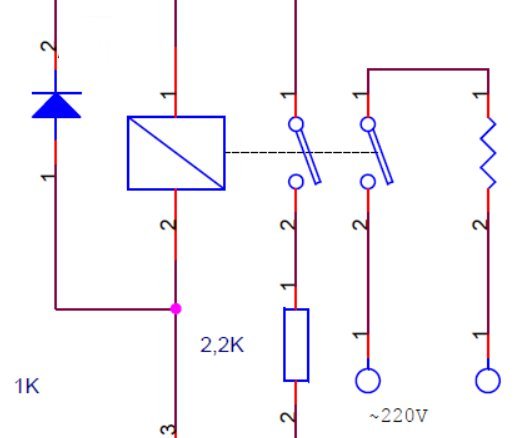

Figure 1
Schematic (PDF)

Disclaimer: The information on this web site is provided "AS IS", without warranty of any kind. The author has made the best efforts to ensure that the designs and the information provided are reliable. Under no circumstances shall the author be liable for any direct, indirect, incidental, special or consequential loss, damage, expense or injury incurred or suffered which is claimed to resulted from use of this site, even if expressly advised of the possibility of such loss, damage, expense or injury, including, without limitation, any fault, error, omission, interruption or delay with respect thereto.

Links:
[1] - LM335 datasheet
[2] - TL431 datasheet
[3] - LM108 datasheet

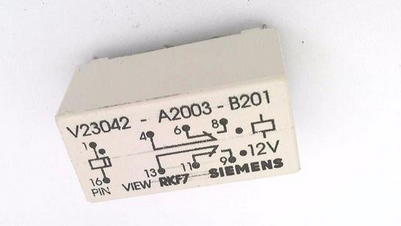

[4] - V23042 datasheet
[5] - BD236 datasheet
